Markoprint ink jet coders


Markoprint X1Jet Thermal Ink Jet Coders

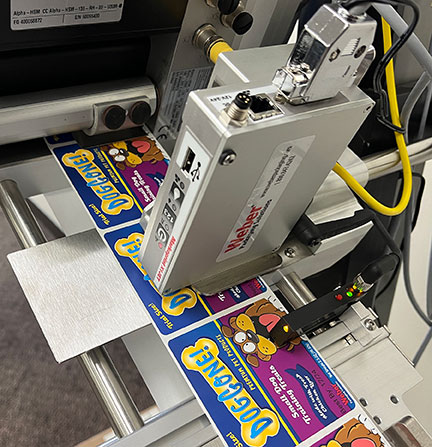

X1Jet printing on an Alpha HSM

The Weber Markoprint X1Jet Thermal Ink Jet Coding Systems are high-resolution coders that provide reliable, clean, readable text, images and bar codes on your products.

The Markoprint X1Jet systems are easy to operate. They use convenient HP ink jet cartridges that make it fast and simple to change ink formulations or address maintenance issues.

The unique thing about the Markoprint coding systems is that they are built to attach to either Weber or Pack Leader label applicators with an optional bracket to add date/lot codes as labels are being applied to your products. The ink dries almost immediately (depending on the formulation) and is very durable for most applications.




MarkoprintX1 Jet TIJ ink jet coder

Markoprint X1Jet - thermal inkjet coder (TIJ)

The Markoprint X1Jet HP Pro is based on the reliable Markoprint line of inkjet systems and is designed for various applications such as food & beverage, chemical, coated/uncoated packaging materials, timber and the pharmaceutical industry.

The small compact integrated controller/printer comes in a single unit. This innovative system codes smooth-absorbent and semi-absorbent surfaces - quickly, accurately and reliably.

• Innovative technology for printing data directly onto labels or products

• Markoprint coders use HP ink cartridges for proven reliability
• Low downtime for maintenance – a new cartridge provides a new print head and elimninates most issues
• High-quality, high-resolution printing at up to 600 dpi




  Markoprint X1Jet Features

The Markoprint X1Jet Thermal Ink Jet Coders

X1Jet ink jet codersThe X1Jet is easy to use. No training is necessary: printing with the X1Jet is simple, due to the 3-button intuitive operation on the top of the coder. LED status lights help you monitor activity. Data transmission is loaded and initialized with a USB stick/interface, Ethernet, or EIA-232 connections.

Universal design for flexible use
Markoprint X1Jet uses True Type fonts for printing. All conventional 1- and 2-dimensional codes can be printed. The controller is fully integrated into the print module.

• Highly compact design
• Integrates easily into your packaging line or onto your label applicator
• No separate photo sensor required for triggering/initializing the printing process – Built in photo sensor already in the system unit (external signal input optional)
• X1Jet printing height up to 1/2" (12.5 mm)

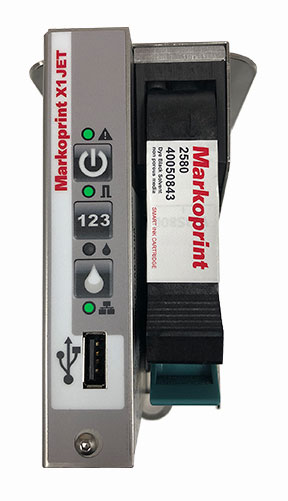

Control
X1 Jet ink jet codersThe easiest way to load your data is with a USB stick. Each controller has a network connection (LAN) and a standard EIA-232 interface, too. Print layouts are created with included iDesign software.

• Data transfer by USB stick
• Data transfer via Ethernet, USB and EIA-232
• Optional interface (printing signals via PLC or external photo sensor)
• Data transfer via Web interface

Comprehensive range of standard accessories
• Rotary/shaft encoders, catering to different belt speeds or production stops during printing
• Flex bracket for varying product spacing
• Assembly brackets for horizontal and vertical application on label applicators

Markoprint X1Jet TIJ ink jet coder controls Wide ink range
A selection of water- and solvent-based inks are available to work with many applications. Paper, cartons, coated surfaces, foils, plastics etc. are coded permanently, with excellent resolution. Get ultimate flexibility with our HP cartridge-based ink jet coding systems.

System Software Options

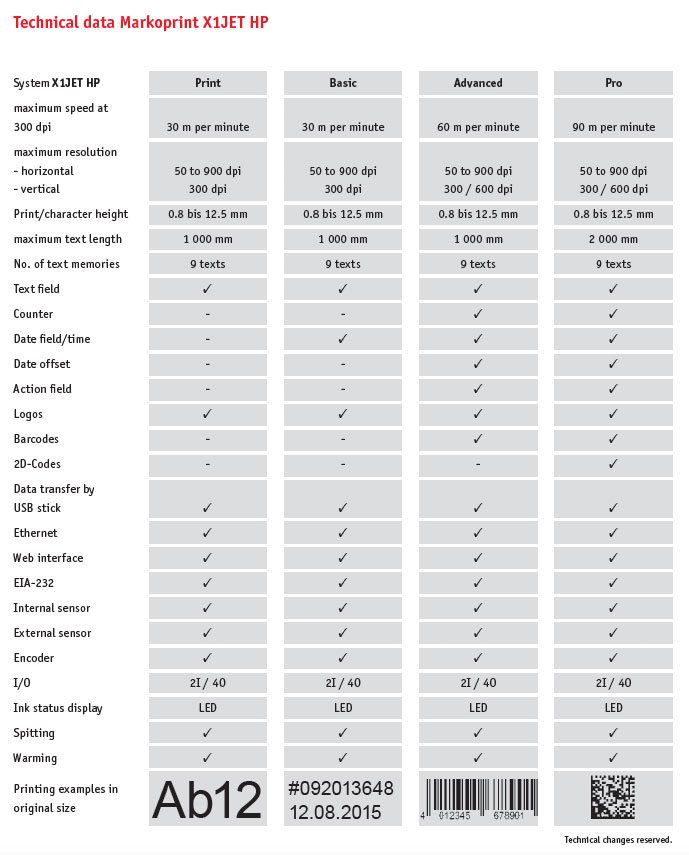

The X1Jet is available in 4 different system software versions: Print, Basic, Advanced and Pro. Each version offers upgrades in speed and available features. See the chart below for details.

X1 Jet ink jet coders
