Model 5300 Series Twin-Tamp
Label Printer-Applicator

Weber's Model 5300 Twin-Tamp label printer-applicator combines a high-performance thermal/thermal-transfer label printer with a specially configured applicator to satisfy the printing and two-label, adjacent-panel application of carton labels in line.

Choose from a wide range of 203-, 300- and 600-dpi print engines
Capable of handling print speeds up to 16 ips
Numerous I/O's ease interfacing with external devices
Monitor operation via a web browser

Download Overview Brochure  arrow


Model 5300 Twin-Tamp label printer applicator

Features

Model 5300 Series Twin-Tamp Label Printer-Applicator

Designed, engineered and built exclusively by Weber, the Twin-Tamp system is available with a choice of print engines, including 203-, 300- or 600-dpi units from manufacturers like Zebra, SATO and Datamax. Label sizes range from 2.0" wide and 1.0" long to 4.0" wide and 6.0" long. Each system can produce variable-sized text, bar codes and graphic images at speeds programmable up to 16 ips.

After a label is printed, it is automatically peeled from its liner and retained by vacuum on a non-contact, tamp-blow applicator pad. The tamp pad is mounted on a 90-degree rotary swing arm that reaches across a conveyor and blows the label to the front panel of the moving carton. Upon its return, a second label is printed and a separate straight-line stroke applies that label to the side of the carton to complete the cycle. Depending on label size, the system can maintain up to 40 cycles per minute at a placement accuracy of ±0.03".

The system also can be configured to label side and rear panels, or single panels. And it easily adjusts to various conveyor heights and carton sizes when mounted on a heavy-duty stand.


Special Features & Options

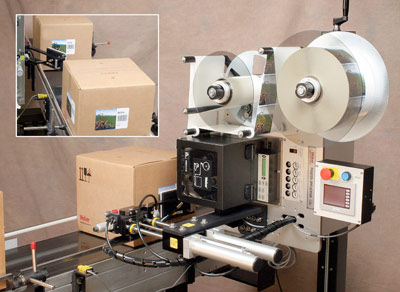

5300 twin-tamp 2-panel label printer applicator features The Model 5300 Twin-Tamp system includes a number of noteworthy features that add to the operational versatility of this printer-applicator:

Browser-based monitoring. The status of all operational functions and configurations can be monitored by logging on to a web page that is unique to each Model 5300 unit.

Numerous I/O's. The system can be interfaced with many types of external devices.

One-to-one media consumption. Special label unwind and rewind dimensions are matched to the system's ribbon supply to ensure they are consumed at the same rate, reducing downtime and eliminating partial changeovers.

Print job storage. Multiple label printing formats can be stored in the system's memory, making it easier for an operator to select a job directly from the applicator instead of downloading a computer file.

The Model 5300 twin-tamp system boasts numerous additional features as well, including an upgradeable microprocessor controller, various inputs/outputs, plus durable construction that will withstand harsh industrial environments.

There also are several optional enhancements that can increase the system's functionality. A product height sensor, for example, enables the printer-applicator to label items of varying heights delivered by the same conveyor.

Other options include a 15-foot umbilical connection that enables the remote location of the unit's controller; an adjustable stand for optimum system orientation; label-on-pad and product-presence sensors; plus beacon light alerts to signal the status of label and ribbon supplies.

Weber also took the hassle out of routine maintenance. The system is programmed with built-in machine cycle diagnostics for self-testing of normal operating cycles, plus input diagnostics that permit testing on specific functions.


Specifications

Model 5300 Series Twin-Tamp Label Printer-Applicator Specifications
Dimensions
29.92"L x 38.09"W x 28.25"H
(75.9cm x 96.7cm x 71.8cm)

Weight
196 lbs. (88.9kg)

Electrical
115 VAC, 60 cycle, 5 amps; overload protection built in
220 VAC, 50 cycle optional

Communication Interface
RS-232-C; Centronics compatible

Air Requirements
5 cfm at 90 psi

Product Sensing
Photoelectric

Processor
Rabbit 3000 Microprocessor

Printing Methods
Direct-thermal and thermal-transfer

Print Resolution
203, 300 or 600 dpi, dependent upon print engine selected

Label Roll Size
Maximum diameter 13.75" O.D. (350mm)

Labeling Speed
Contingent upon print engine and label size/content

Label Placement
Accurate to ±0.03" (.76mm) when labels are produced to specifications and product handling is controlled and consistent

Label Sizes
Minimum: 2.0"W x 1.0"L (50.8mm x 25.4mm)
Maximum: 4.0"W x 6.0"L (101.6mm x 152.4mm)

Print Area
Up to 4.0"W x 6.0"L (101.6mm x 152.4mm)

Labels
Die-cut, waste removed with 0.125" (3mm) minimum separation between labels in running direction and 0.125" (3mm) maximum web over label width; direct or thermal-transfer

Labeling Software
Weber Legitronic® software

Print Characters & Bar Codes
Text: Selection of fonts, including OCR-A & B representation

Bar Codes: UPC-A/E, EAN-8/13, Code 39, I 2 of 5, Code 128, Codabar, MSI, 2 of 5, Code 93, UPC Bookland, Matrix 2 of 5, Postnet, UCC/EAN 128, PDF-417, Maxicode, Data Matrix

(Text and bar codes can be rotated 360 degrees; horizontal and vertical character expansion)

Optional Features
Adjustable Stand
Quick-change tamp pad
Label-on-pad sensor
Product-presence sensor
Beacon alert lights
