Markoprint X4Jet ink jet coders


Markoprint X4Jet Thermal Ink Jet Coders

X1Jet printing on an Alpha HSM

The Weber Markoprint X4Jet Thermal Ink Jet Coding System features up to four heads of high-resolution coding and a controller that provide reliable, clean, readable text, images and bar codes on your labels or products.

The Markoprint X4Jet systems are easy to operate. They use convenient HP ink jet cartridges that make it fast and simple to change ink formulations or address maintenance issues.

A unique feature about the Markoprint coding systems is that they are built to attach to either Weber or Pack Leader label applicators with an optional bracket to add date/lot codes as labels are being applied to your products. The ink dries almost immediately (depending on the formulation) and is very durable for most applications.




Markoprint X1 Jet TIJ ink jet coder

Markoprint X4Jet - thermal inkjet coder (TIJ)

The Markoprint X4Jet HP is based on the reliable Markoprint line of inkjet systems and is designed for various applications such as food & beverage, chemical, coated/uncoated packaging materials, timber and the pharmaceutical industry.

The X4Jet system is very flexible and allows you to print one message up to 2" (50mm) high with the four printhead assembly, two separate messages up to 1" (25mm) high using dual printhead assembly, or four individual printheads. The dedicated touch screen keyboard controller keeps the functionality at your fingertips.

• Innovative technology for printing data directly onto labels or products

• Markoprint coders use HP ink cartridges for proven reliability
• Low downtime for maintenance – a new cartridge provides a new print head and elimninates most issues
• High-quality, high-resolution printing at up to 600 dpi


  Markoprint X4Jet Features

The Markoprint X4Jet Thermal Ink Jet Coder

X4Jet ink jet coder options

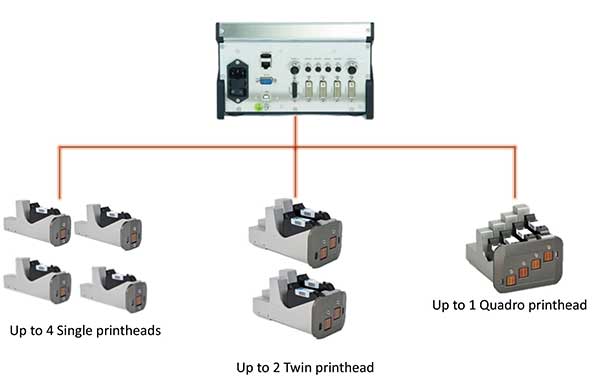

The multi-channel technology of the X4Jet is optimized for use on production lines with up to 4 print heads, either individual or together.

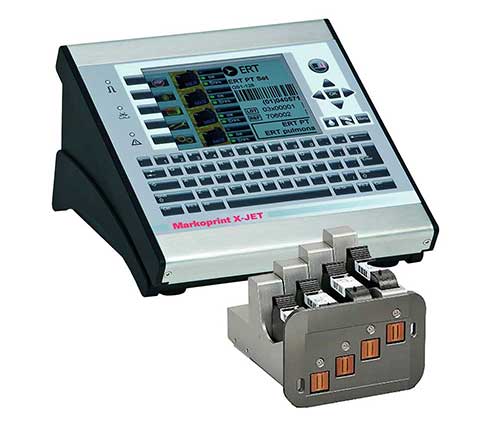

The 5.7-inch touch screen controller & keyboard make operation and set-up easy. idesign8 software is included but not necessary for creating or modifying messages.

Ultimate Flexibility with Multi-Channel Printing

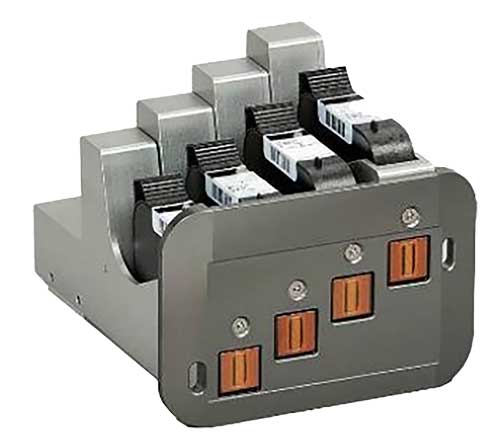

• Print with the Quadro 4-head assembly on one line for a print height of 2" (50mm)
• Print with 2 dual-head assemblies to print two lines at 1" (25mm)
• Print with 4 individual heads on 4 separate lines with a print height upp to 0.5: (12.5mm)

Universal design for flexible use
• Markoprint X4Jet uses True Type fonts for printing. All conventional 1- and 2-dimensional codes can be printed.
• Highly compact design
• Integrates easily into your packaging line or onto your label applicator
• X4Jet printing height up to 2" (50 mm) with Quadro head
• Print up to 590'/min (180m) at 300 dpi; maximum resolution 600 dpi

X4Jet Controller

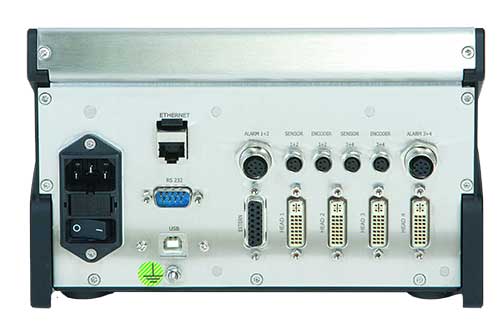

X4Jet ink jet controller inputsThe back of the X2Jet controller features a host of inputs for your data, including a USB port, LAN connection and a EIA-232 interface. There are also M8 ports for using optional sensors or optical encoders.

Comprehensive range of standard accessories
• Rotary/shaft encoders, catering to different belt speeds or production stops during printing
• Flex bracket for varying product spacing
• Assembly brackets for horizontal and vertical application on production lines or label applicators

Wide ink range
A selection of water- and solvent-based inks are available to work with many applications. Paper, cartons, coated surfaces, foils, plastics etc. are coded permanently, with excellent resolution. Get ultimate flexibility with our HP cartridge-based ink jet coding systems.

System Software Options

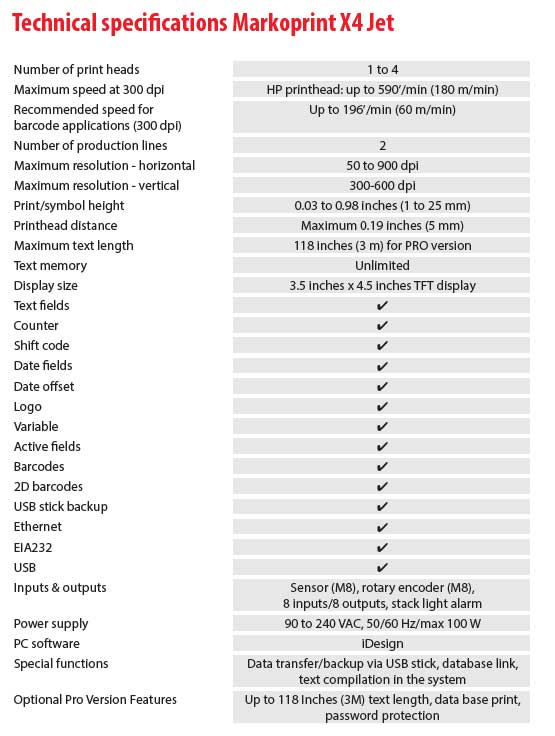

The X4Jet is available in 2 different system software versions: Advanced and Pro. Each version offers upgrades in speed and available features. See the chart below for details.

X4Jet ink jet coders systems
